Vital live¶

Smart Patient Monitoring Dashboard

PC, Web and Mobile¶

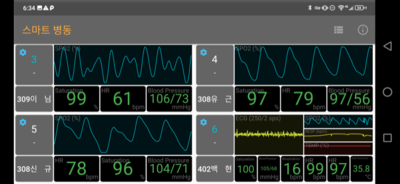

Dynamic Layout¶

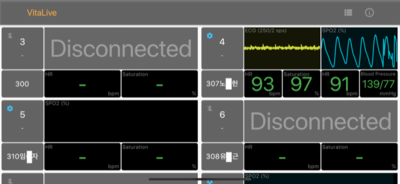

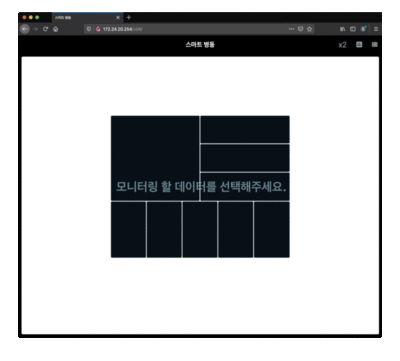

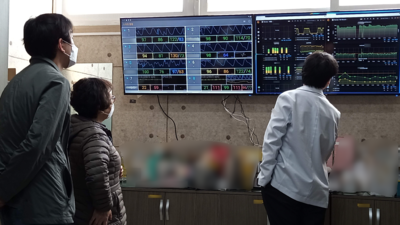

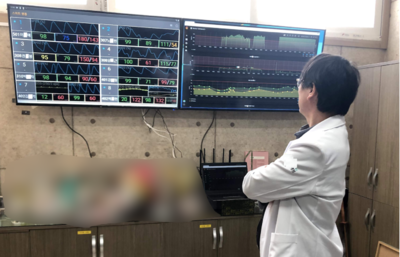

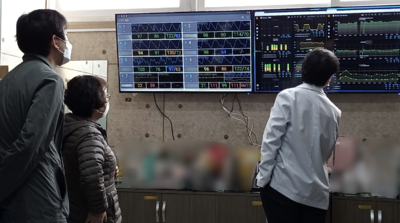

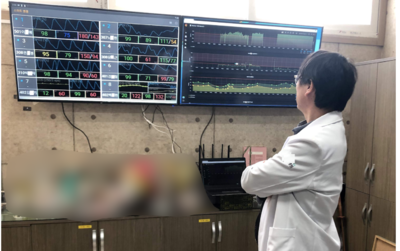

Multiple Screen Display¶

• Table of contents
• Vital live
  • PC, Web and Mobile
  • Dynamic Layout
  • Multiple Screen Display
• Privacy Policy / 개인정보보호정책
  • Feature
  • Function 기능 세부 설명
    • Dashboard
    • History Review
  • Screen Play
    • Dashboard
• Solution Component
• Architecture
  • Data Flow
  • Connection Flow
• Data Flow and connectivity / 데이터 흐름 및 연결
• Connectable Scanner Device / 연결 호환 기기
• Scanner Device Detail
  • Shanghai Berry Electronics Co. Ltd.
• Gallery
  • Shenzhen Jumper Medical Equipment Co. Ltd.
• HL7 support
  • as SCP (data receiver operation)
    • Version
    • Support Parameter Values
    • Wave Data - ECG, SpO2
    • Remark :
  • as SCU (data sender operation)
• kFDA / 식약처

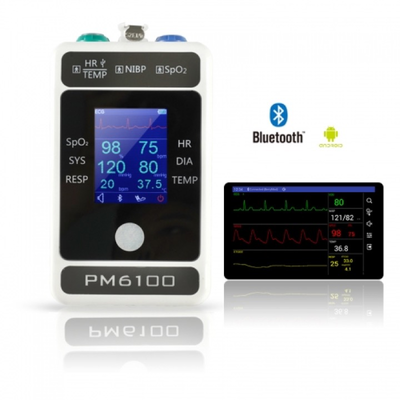

  • BerryMed PM6100 : Portable Scanner
  • Vital Live : Software
• Sales Kit

Privacy Policy / 개인정보보호정책¶

Feature¶

• Complete Smart App on realtime stream
• Configurable Parameters and Wave UI component
• Seamless and Responsive UI
  • Landscape and Portrait
  • multiple platform support (Android, iOS, Tablet, Phone, Web)
  • multiple column for massive device
• Theme and Text Coloring (diff. or range config)
• Conditional SMS Notice
• Multiple server connection change support (LAN or Cloud)
• Inter-operable via HL7 support

Function 기능 세부 설명¶

Dashboard¶

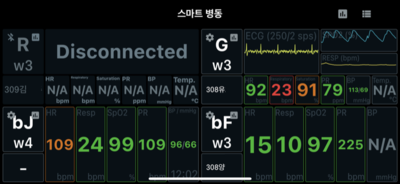

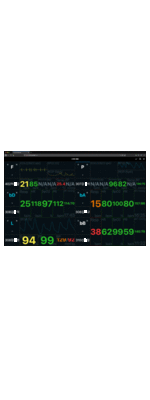

• Live Wave Display
  • ECG, SpO2, Respiratory, Temperature
• Indication
  • Value Difference based Text Coloring
  • Conditional Range based Text Coloring
  • Live Device Status Message display
  • Device Marker to help Offline and Logical Device match, recognition (distinguish each one)
  • Device Battery Level and Charge Status Indication
  • Device Bluetooth Link Connection status
• Send Text to mobile phone
  • under value watch and then send text to specified mobile phone number
• Alias and Remark change
  • use as patient name or id aka "Display Name"
  • use as description of device or patient
• Operation Trigger
  • NIBP Check Start
• Device Display
  • Select or Remove
  • Display Order
• Device Config Change
  • NIBP Mode
  • ECG Filter and Gain Adjust
• Server Config
  • Cloud or Local Select
  • Local Server config and connection test

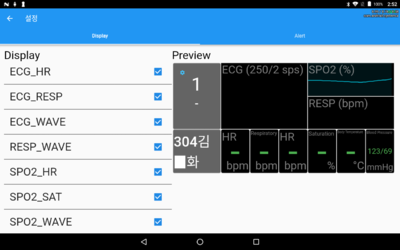

• UI Theme change
  • Dark mode, Soft mode

History Review¶

• List of Device Alias support
  • sort by name and time
  • remove record set
• NIBP and Saturation Chart Display support
  • Scroll, Scope and Zoom/Pan

Screen Play¶

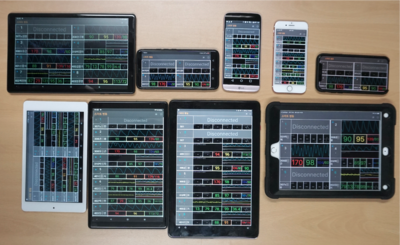

platform	screen through

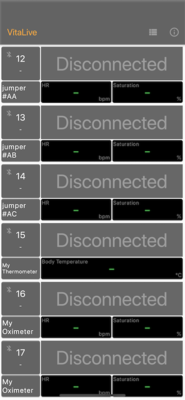

Mobile - android, ios
Desktop - firefox, chrome
Desktop - macOS, windows

Dashboard¶

platform	portrait	landscape	responsive

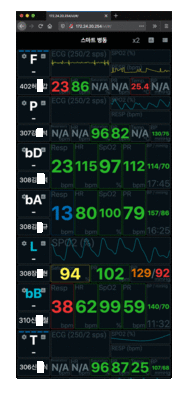

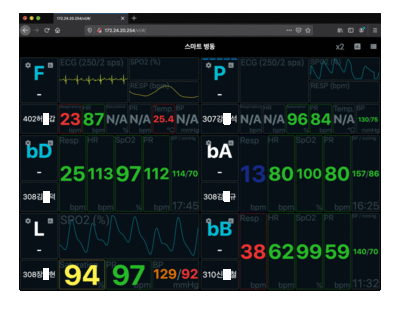

Web, Desktop, firefox

Solution Component¶

• Application
  • Mobile(android, iOS) and Web
• Gateway : Link Live
  • connect scanners via bluetooth and transfer to server via tcp/ip > Optional
• Cloud or Local Server
• Display Screen Mirroring Tablet
• VPN(Virtual Private Network) support
  • connect securely from gateway to mobile phone through public internet

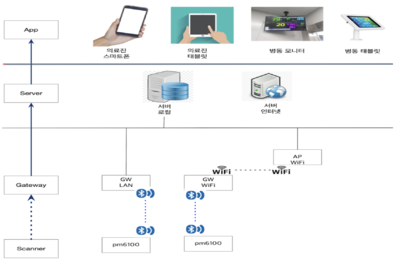

Architecture¶

Data Flow¶

Connection Flow¶

Data Flow and connectivity / 데이터 흐름 및 연결¶

• patient or bed side
  • attach cuff or sensors with scanner(PM6100)
  • link with gateway through Bluetooth
• room
  • upto 10 bluetooth connections for each gateway
  • gateway transmit data to server (cloud or local)
• ward
  • mobile application
  • limited list of scanners for each ward
  • display signal and parameters
  • manage scanner with editable Name or Title
• hospital
  • mobile application on tablet
  • connect to server (cloud or local)
  • all count of scanners can be monitored
• doctor
  • mobile application on smart phone : connect to cloud server
• from internet
  • mobile app or web dashboard

• Table of contents
• Vital live
  • PC, Web and Mobile
  • Dynamic Layout
  • Multiple Screen Display
• Privacy Policy / 개인정보보호정책
  • Feature
  • Function 기능 세부 설명
    • Dashboard
    • History Review
  • Screen Play
    • Dashboard
• Solution Component
• Architecture
  • Data Flow
  • Connection Flow
• Data Flow and connectivity / 데이터 흐름 및 연결
• Connectable Scanner Device / 연결 호환 기기
• Scanner Device Detail
  • Shanghai Berry Electronics Co. Ltd.
• Gallery
  • Shenzhen Jumper Medical Equipment Co. Ltd.
• HL7 support
  • as SCP (data receiver operation)
    • Version
    • Support Parameter Values
    • Wave Data - ECG, SpO2
    • Remark :
  • as SCU (data sender operation)
• kFDA / 식약처
  • BerryMed PM6100 : Portable Scanner
  • Vital Live : Software
• Sales Kit

Connectable Scanner Device / 연결 호환 기기¶

image	kind	model	type	company	params	wave
	BT 4	PM6100	Portable Patient Monitor	Shanghai BerryMed	NIBP, SpO2-Saturation, SpO2-PulseRate, HR, 호흡수, Temperature	ECG, SpO2, Temperature
	BT 4	PM6100B	Portable Patient Monitor	Shanghai BerryMed	NIBP, SpO2-Saturation, SpO2-PulseRate	SpO2
	HL7	BM Series, BMCentral	Patient Monitor	BioNet	NIBP, SpO2-Saturation, SpO2-PulseRate, HR, 호흡수	n/a
	BT LE	JPD-500F	Fingertip Pulse Oximeter	Shenzhen Jumper Medical	SpO2-Saturation, PulseRate, PI	SpO2
	BT LE	JPD-FR302	IR Thermometer	Shenzhen Jumper Medical	Temperature	n/a
	BT LE	MiBand2,3	Smart Band	Xiaomi	HR, Steps	n/a

Scanner Device Detail¶

Shanghai Berry Electronics Co. Ltd.¶

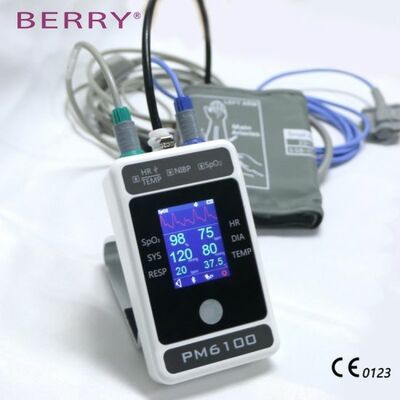

Product Link : Model PM6100

D1	D2

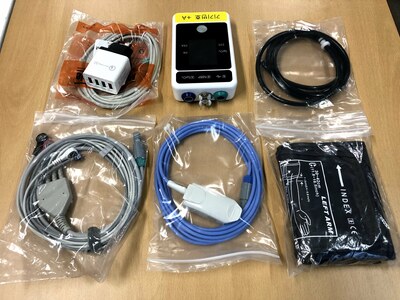

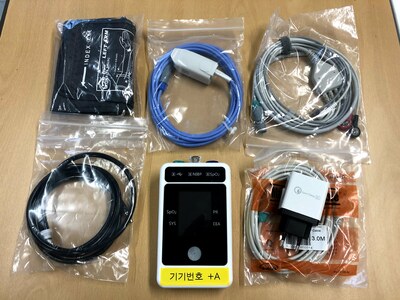

Package Components

-	-

Gallery¶

• PM6100
  • Google Album - https://photos.app.goo.gl/LVXNLYFy6XVnZkFJ6
• Vital Live
  • Google Album - https://photos.app.goo.gl/AhAVqFH6kbKxbfqq9
  • Youtube https://youtu.be/tFxZu1pDYUc [30s] https://youtu.be/QPtGVqGeT6Y [3min]

Shenzhen Jumper Medical Equipment Co. Ltd.¶

Fingertip Pulse Oximeter JPF-500F

HL7 support¶

• Ver 2.x ~
  • authorized only access HL7 Live

as SCP (data receiver operation)¶

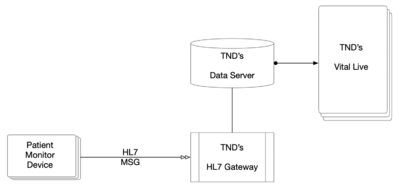

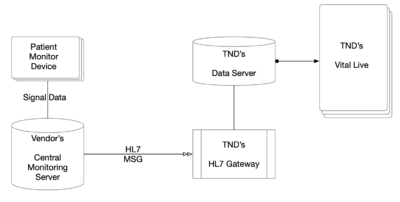

from central server	from device

Version¶

• 1.3.x ~

Support Parameter Values¶

• ECG Param : HR, RespRate
• SpO2 Param : Saturation, PulseRate
• NIBP Param : BP S, M, D
• IBP Param : support but disabled

Wave Data - ECG, SpO2¶

• No Export From Bionet

Recommends MFER : Medical waveform Format Encoding Rules

Remark :¶

• Bionet Central 또는 Device에서 HL7 Export 설정
  • 항목 : IP, port, interval(10Sec, 30Sec,...), ACK(Y/N)
• Bionet Patient Monitor Device에서는 PatientID 를 임의의 고유값으로 "필수" 입력 (기기 구분값으로 사용됨)
  • Bionet Central 에서 환자 정보를 Device 에 Assign 한 뒤 전송되는 데이터의 경우,
  • Name 의 한글은 Encoding이 깨짐(구분값으로 사용하지 않음)
• Bionet HL7 Export Data Limit
  • 한글 Encoding 깨짐
  • 기기구분 고유값 없음
  • Section의 Date 값 불일치 케이스 있음

as SCU (data sender operation)¶

• to be done

kFDA / 식약처¶

BerryMed PM6100 : Portable Scanner¶

• Regional Distributorship : since Sept. 2020
• 품목명 : 의료용다기능측정기록장치 / A26270.01
• under GMP Certification, end of 2020

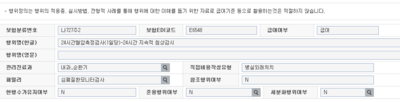

고시 제2019-85호 경피적 혈액이산화탄소분압 및 산소포화도측정[1일당]의 급여기준 (2019.7.1.시행)
1. 나724-1 경피적 혈액이산화탄소분압 및 산소포화도 측정[1일당]은 다음과 같이 실시한 경우 요양급여를 인정함.

                                            - 다   음 -
 가. 중증 만성폐쇄성폐질환 환자에서 환기상태의 지속적 모니터링이 필요한 경우
 나. 만 6세 미만 소아 호흡부전환자의 지속적 모니터링이 필요한 경우
 다. 중증 만성호흡부전 환자나 만성 폐질환 환자 중 개인용 인공호흡기 필요 여부를 결정하기 위해 환기상태를 모니터링 해야 하는
     경우 또는 개인용 인공호흡기 사용 중인 환자에게 인공호흡기 사용의 적정성 평가를 위해 모니터링이 필요한 경우

2. 상기 1. 이외 시행하는 경우에는 「선별급여 지정 및 실시 등에 관한 기준」에 따라 본인부담률을 80%로 적용함.

출처 : 건강보험심사평가원

산소포화도

혈압

식약처 기준 규격

• 단일 기능 1ch 심전도계는 임상 불필요
• 다기능 측정장치 군 내에 환자감시장치 품목에 포함된 ECG는 임상자료 요구

Vital Live : Software¶

• 품목 등급 : 2등급 유헬스케어의료기기
• cf. 환자중앙감시장치 A26100.01 2등급, 환자중앙감시장치소프트웨어( 기준규격 부재 )

Sales Kit¶

access limit, authorized only

• Comparison Sheet
• Solution Book
